Apple IIe

Blue Arrow Company:  Apple Inc. (Apple Computer, Inc.)
Blue Arrow Model Number:  A2S2064
Blue Arrow Manufacture Date/Year:  1984


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Apple IIe front Apple IIe back Apple IIe side1 Apple IIe side2
Apple IIe herol Apple IIe heror Apple IIe top1 Apple IIe top2


Blue Arrow Specifications

Core Unit:

  • Processor:  1 MHz 65C02
  • RAM:
    • 64K onboard
    • 128K with a 64K Extended 80-Column Text Card installed
    • 1 MB - 4 MB possible with third party cards
  • Graphics:
    • Graphics Display Modes:
      • Low-resolution 16-color graphics:
        1. 40h x 48v color blocks
        2. 40h x 40v with four lines of text
      • High-resolution 6-color graphics:
        1. 280h x 192v dots
        2. 280h x 160v with four lines of text
      • Double high-resolution 16-color graphics:
        1. 560h x 192v dots (Extended 80-Column Text Card required)
    • Text Display Modes:
      • 40-column text, 24 lines, 5 x 7 dot matrix (suitable for television or monitor)
      • 80-column text, 24 lines, 5 x 7 dot matrix (Extended 80-Column Text Card required)(suitable for monitor only)
    • Note:
      • All graphics modes may be displayed on a television or monitor
      • Composite monitor or RF Modulator to TV supported
  • Storage:
    • Compatible External Drives:
      • Audio Cassette Tape
      • 5.25-inch floppy drives (w/card)
      • 800K floppy drive (w/card)
      • 1.4 MB floppy (w/card)
      • SCSI hard drive (w/card)
    • Built-in Internal Drive:
      • No internal built-in drives
      • Note:
        • Various third-party hard drives were available on card or by replacing the power supply
  • Expansion Slots:
    • 8 Apple II proprietary slots
    • Recommended Slot Configuration:
      • Slot 1: Printer
      • Slot 2: Modem
      • Slot 3: Empty (if card is in Aux. Conn.)
      • Slot 4: Mouse or proprietary expansion card
      • Slot 5: Drive drive, hard drive, or mouse
      • Slot 6: Drive drive
      • Slot 7: Disk drive or co-processor
      • Aux. Conn.: Extended 80-Column Text Card
  • Built-in Ports (all other ports require an expansion card):
    • Video out (composite)
    • Audio Cassette Input/Output
    • Paddles (onboard)
    • Keypad (onboard)
    • Joystick or Paddles Connector (9-Pin)
    • 7 expansion slots that could be used for port connectors (Aux. Conn. is used for memory)



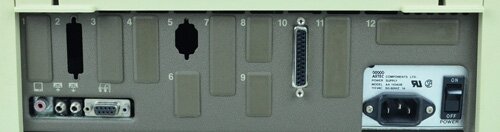

Apple IIe ports
Apple IIe Ports: 5.25-inch Floppy Drive Card (connector on card) and Super Serial Card Installed

Operating System:

  • Compatible Operating Systems:
    • DOS 3.3, ProDOS, CP/M (with Z-80 card), Pascal, MS-DOS (with card)
  • System Disk:
    • Apple II System Utilities
  • Languages in ROM:
    • Applesoft BASIC

Keyboard and Mouse:

  • Keyboard:  Built-in, 63 keys (upper and lower case)
  • Mouse:  Requires a mouse card (usually a DB-9 Apple II Mouse Card)

Physical Dimensions:

  • Size (Inches):  4.25 H x 15.25 W x 17.75 D
  • Weight (Pounds):  11.5


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Apple IIe n1 Apple IIe n2 Apple IIe n3 Apple IIe n4
Apple IIe n5


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Apple IIe o1 Apple IIe o2 Apple IIe o3 Apple IIe o4
Apple IIe o5 Apple IIe o6 Apple IIe o7
