PowerBook 170

Blue Arrow Company:  Apple Inc. (Apple Computer, Inc.)
Blue Arrow Model Number:  M5409
Blue Arrow Manufacture Date/Year:  1991


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
PowerBook 170 front PowerBook 170 back PowerBook 170 side1 PowerBook 170 side2
PowerBook 170 herol PowerBook 170 heror PowerBook 170 top1 PowerBook 170 top2


Blue Arrow Specifications

Core Unit:

  • Processor:  25 MHz 68030
  • PMMU:  Integrated
  • FPU:  68882
  • RAM:
    • RAM Type:  Pseudostatic RAM (PSRAM, PB1xx)
    • RAM Slots:  1
    • Min - Max RAM:  4 MB - 8 MB
    • Onboard RAM:  4 MB
  • Graphics:
    • Display:
      • 9.8" Monochrome active-matrix (1-bit) LCD
    • Resolution (Built-in LCD, 128K static):
      • 640 x 400, 4-bit
  • Audio:
    • Sound Generator:
      • Apple Sound Chip provides 8-bit sound, capable of driving stereo headphones or other stereo equipment through sound port
    • Sound Input:
      • 8-bit, sampled at 11 or 22 KHz
    • Microphone:
      • Not built-in, shipped with external omnidirectional microphone
  • Storage:
    • Internal Hard Drive:  SCSI (40 - 80 MB)
    • Floppy Disk Drive:  1.44 MB manual
  • Ports:
    • DIN-8 RS-422 serial printer port
    • DIN-8 RS-422 serial modem port
    • HDI-30 SCSI port
    • 1 Apple Desktop Bus (ADB) port
    • RJ-11 2400-baud port
    • Audio out jack
    • Audio in jack

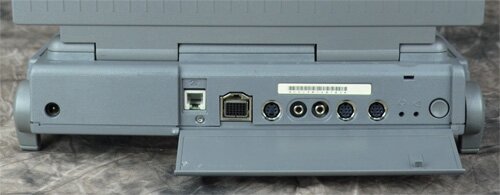

PowerBook 170 ports
PowerBook 170 Ports

Battery:
  • NiCad (Nickel-cadmium)
  • Unit can hold 1 battery
  • 2 to 3 hours of continuous use before recharge
Operating System:

Keyboard/Pad:

  • Keyboard:  Standard Macintosh layout with two-level tilt adjustment
  • Trackball:  1.25 inches, two buttons
Physical Dimensions:
  • Size (Inches):  2.25 H x 11.25 W x 9.3 D
  • Weight (Pounds):  6.8


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
PowerBook 170 n1 PowerBook 170 n2 PowerBook 170 n3 PowerBook 170 n4
PowerBook 170 n5 PowerBook 170 n6 PowerBook 170 n7 PowerBook 170 n8
PowerBook 170 n9


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
PowerBook 170 o1 PowerBook 170 o2 PowerBook 170 o3 PowerBook 170 o4
PowerBook 170 o5 PowerBook 170 o6
