PowerBook 180

Blue Arrow Company:  Apple Inc. (Apple Computer, Inc.)
Blue Arrow Model Number:  M4440
Blue Arrow Manufacture Date/Year:  1992


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
PowerBook 180 front PowerBook 180 back PowerBook 180 side1 PowerBook 180 side2
PowerBook 180 herol PowerBook 180 heror PowerBook 180 top1 PowerBook 180 top2


Blue Arrow Specifications

Core Unit:

  • Processor:  33 MHz 68030
  • PMMU:  Integrated
  • FPU:  68882
  • RAM:
    • RAM Type:  Pseudostatic RAM (PSRAM, PB1xx)
    • RAM Slots:  1
    • Min - Max RAM:  4 MB - 14 MB
    • Onboard RAM:  4 MB
  • Graphics:
    • Display:
      • 9.8" Grayscale active-matrix (4-bit, 16 grays) LCD
    • Resolution (Built-in LCD, 128K static):
      • 640 x 400, 4-bit
    • Resolution External Only (512K VRAM, up to 256 colors):
      • 512 x 384, 8-bit
      • 640 x 400, 8-bit
      • 640 x 480, 8-bit
      • 800 x 600, 8-bit
      • 832 x 624, 8-bit
  • Audio:
    • Sound Generator:
      • Apple Sound Chip provides 8-bit sound, capable of driving stereo headphones or other stereo equipment through sound port
    • Sound Input:
      • 8-bit, sampled at 11 or 22 KHz
    • Microphone:
      • Built-in omnidirectional; output voltage of 4 mV, peak-to-peak, at normal volume
  • Storage:
    • Internal Hard Drive:  SCSI (80 - 120 MB)
    • Floppy Disk Drive:  1.44 MB manual
  • Ports:
    • DIN-8 RS-422 serial printer port
    • DIN-8 RS-422 serial modem port
    • HDI-30 SCSI port
    • 1 Apple Desktop Bus (ADB) port
    • Video-out port, supporting 8 bit/256 colors
    • One slot available for optional RJ-11 modem port (PowerBook Express Modem, 14,400 bps)
    • Audio out jack
    • Audio in jack

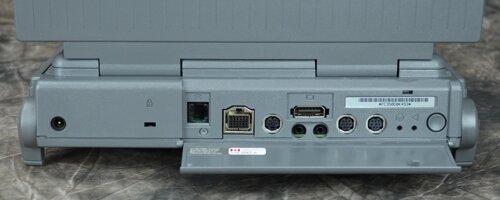

PowerBook 180 ports
PowerBook 180 Ports

Battery:
  • NiCad (Nickel-cadmium)
  • Unit can hold 1 battery
  • 2.5 to 3 hours of continuous use before recharge
Operating System:
  • Classic Macintosh System 7.1 to 7.6.1
  • Screen Captures:
    • About This Macintosh - System Software 7.5.5
    • Desktop with Floppy
    • Macintosh HD Contents
    • Memory Control Panel
    • Desktop - 16 Grays Mode
    • Excel in Black & White
    • Excel in 4 Grays Mode
    • Excel in 16 Grays Mode

Keyboard/Pad:

  • Keyboard:  Standard Macintosh layout with two-level tilt adjustment
  • Trackball:  1.25 inches, two buttons
Physical Dimensions:
  • Size (Inches):  2.25 H x 11.25 W x 9.3 D
  • Weight (Pounds):  6.8


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
PowerBook 180 n1 PowerBook 180 n2 PowerBook 180 n3 PowerBook 180 n4
PowerBook 180 n5 PowerBook 180 n6 PowerBook 180 n7 PowerBook 180 n8


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
PowerBook 180 o1 PowerBook 180 o2 PowerBook 180 o3 PowerBook 180 o4
PowerBook 180 o5 PowerBook 180 o6
