Macintosh 512K

Blue Arrow Company:  Apple Inc. (Apple Computer, Inc.)
Blue Arrow Model Number:  M0001W
Blue Arrow Manufacture Date/Year:  1985


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Macintosh 512K front Macintosh 512K back Macintosh 512K side1 Macintosh 512K side2
Macintosh 512K herol Macintosh 512K heror Macintosh 512K top1 Macintosh 512K top2


Blue Arrow Specifications

Core Unit:

  • Processor:  8 MHz 68000
  • RAM:  512K (soldered onboard)
  • Graphics:
    • Built-in, 512 x 384, 1-bit
    • Screen size is 9-inch
    • Capable of black and white pixels only
  • Built-in Drives:
    • 400K 3.5-inch single-sided floppy
    • No internal hard disk
  • Ports:
    • External 400K floppy disk port
    • DB-9 serial printer port
    • DB-9 serial modem port
    • DB-9 mouse port
    • Audio out
    • Keyboard (connection on front)

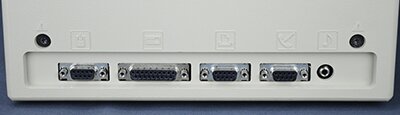

Macintosh 512K ports
Macintosh 512K Ports

Keyboard and Mouse:

  • Keyboard:  Proprietary connector similiar to RJ-11
  • Keypad:  Proprietary connector similiar to RJ-11
  • Mouse:  DB-9

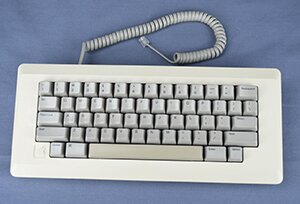

Macintosh 512K keyboard
Keyboard

Macintosh 512K mouse
DB-9 Mouse
Macintosh 512K keypad
Keypad
Operating System:
Physical Dimensions:
  • Size (Inches):  13.6 H x 9.6 W x 10.9 D
  • Weight (Pounds):  16.5


Blue Camera Camera Used:  Nikon D40
Blue Info Images Copyright:  Click Here
Macintosh 512K n1 Macintosh 512K n2 Macintosh 512K n3 Macintosh 512K n4
Macintosh 512K n5 Macintosh 512K n6 Macintosh 512K n7


Blue Camera Camera Used:  Nikon D40
Blue Info Images Copyright:  Click Here
Macintosh 512K o1 Macintosh 512K o2 Macintosh 512K o3 Macintosh 512K o4
Macintosh 512K o5 Macintosh 512K o6 Macintosh 512K o7 Macintosh 512K o8
Macintosh 512K o9 Macintosh 512K o10
