Macintosh Performa 600CD

Blue Arrow Company:  Apple Inc. (Apple Computer, Inc.)
Blue Arrow Model Number:  M1350
Blue Arrow Manufacture Date/Year:  1992


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Macintosh Performa 600 front Macintosh Performa 600 back Macintosh Performa 600 side1 Macintosh Performa 600 side2
Macintosh Performa 600 herol Macintosh Performa 600 heror Macintosh Performa 600 top1 Macintosh Performa 600 top2


Blue Arrow Specifications

Core Unit:

  • Processor:  32 MHz 68030
  • FPU:  32 MHz 68882 (Optional)
  • RAM:  1 MB to 68 MB (4 MB onboard)
  • Graphics:
    • Standard DRAM:  512K (2 x 256K)
    • Maximum DRAM:  1 MB (2 x 512K)
    • Display Resolutions:
      • 512 x 384, 16-bit (2 x 256K), 16-bit (2 x 512K)
      • 640 x 480, 8-bit (2 x 256K), 16-bit (2 x 512K)
  • Built-in Drives:
    • 1.4 MB 3.5-inch floppy disk drive
    • 2x CD-ROM (caddy loading)
    • Internal 160 MB SCSI hard drive
  • Internal Expansion:
    • 3 NuBus slots
  • Ports:
    • DIN-8 RS-422 serial printer port
    • DIN-8 RS-422 serial modem port
    • DB-25 SCSI port
    • DB-15 monitor port
    • 2 Apple Desktop Bus (ADB) ports
    • Audio out
    • Audio in

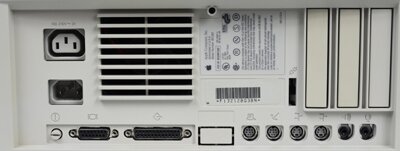

Macintosh Performa 600 ports
Macintosh Performa 600CD Ports

Keyboard and Mouse:

  • Keyboard:  ADB
  • Mouse:  ADB

Operating System:

Physical Dimensions:
  • Size (Inches):  6 H x 13 W x 16.5 D
  • Weight (Pounds):  25


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Macintosh Performa 600 n1 Macintosh Performa 600 n2 Macintosh Performa 600 n3 Macintosh Performa 600 n4
Macintosh Performa 600 n5


Blue Note Note:  These Images show the process of cleaning and restoring this Performa 600CD
Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Macintosh Performa 600 Cleaning 1 Macintosh Performa 600 Cleaning 2 Macintosh Performa 600 Cleaning 3 Macintosh Performa 600 Cleaning 4
Macintosh Performa 600 Cleaning 5 Macintosh Performa 600 Cleaning 6 Macintosh Performa 600 Cleaning 7 Macintosh Performa 600 Cleaning 8
Macintosh Performa 600 Cleaning 9 Macintosh Performa 600 Cleaning 10 Macintosh Performa 600 Cleaning 11 Macintosh Performa 600 Cleaning 12
Macintosh Performa 600 Cleaning 13 Macintosh Performa 600 Cleaning 14 Macintosh Performa 600 Cleaning 15 Macintosh Performa 600 Cleaning 16
Macintosh Performa 600 Cleaning 17 Macintosh Performa 600 Cleaning 18 Macintosh Performa 600 Cleaning 19 Macintosh Performa 600 Cleaning 20
Macintosh Performa 600 Cleaning 21 Macintosh Performa 600 Cleaning 22 Macintosh Performa 600 Cleaning 23 Macintosh Performa 600 Cleaning 24
Macintosh Performa 600 Cleaning 25 Macintosh Performa 600 Cleaning 26 Macintosh Performa 600 Cleaning 27 Macintosh Performa 600 Cleaning 28
Macintosh Performa 600 Cleaning 29 Macintosh Performa 600 Cleaning 30 Macintosh Performa 600 Cleaning 31 Macintosh Performa 600 Cleaning 32
Macintosh Performa 600 Cleaning 33 Macintosh Performa 600 Cleaning 34 Macintosh Performa 600 Cleaning 35 Macintosh Performa 600 Cleaning 36
Macintosh Performa 600 Cleaning 37 Macintosh Performa 600 Cleaning 38 Macintosh Performa 600 Cleaning 39 Macintosh Performa 600 Cleaning 40
Macintosh Performa 600 Cleaning 41 Macintosh Performa 600 Cleaning 42 Macintosh Performa 600 Cleaning 43 Macintosh Performa 600 Cleaning 44
Macintosh Performa 600 Cleaning 45 Macintosh Performa 600 Cleaning 46 Macintosh Performa 600 Cleaning 47 Macintosh Performa 600 Cleaning 48
Macintosh Performa 600 Cleaning 49 Macintosh Performa 600 Cleaning 50 Macintosh Performa 600 Cleaning 51 Macintosh Performa 600 Cleaning 52
Macintosh Performa 600 Cleaning 53 Macintosh Performa 600 Cleaning 54 Macintosh Performa 600 Cleaning 55 Macintosh Performa 600 Cleaning 56
Macintosh Performa 600 Cleaning 57 Macintosh Performa 600 Cleaning 58 Macintosh Performa 600 Cleaning 59 Macintosh Performa 600 Cleaning 60
Macintosh Performa 600 Cleaning 61 Macintosh Performa 600 Cleaning 62 Macintosh Performa 600 Cleaning 63 Macintosh Performa 600 Cleaning 64
Macintosh Performa 600 Cleaning 65 Macintosh Performa 600 Cleaning 66 Macintosh Performa 600 Cleaning 67 Macintosh Performa 600 Cleaning 68
Macintosh Performa 600 Cleaning 69
