PowerBook G3 233 (Wallstreet)

Blue Arrow Company:  Apple Inc. (Apple Computer, Inc.)
Blue Arrow Model Number:  M4753
Blue Arrow Manufacture Date/Year:  1998


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
PowerBook G3 233 (Wallstreet) front PowerBook G3 233 (Wallstreet) back PowerBook G3 233 (Wallstreet) side1 PowerBook G3 233 (Wallstreet) side2
PowerBook G3 233 (Wallstreet) herol PowerBook G3 233 (Wallstreet) heror PowerBook G3 233 (Wallstreet) top1 PowerBook G3 233 (Wallstreet) top2


Blue Arrow Specifications

Core Unit:

  • Processor:  233 MHz PowerPC 740 (G3)
  • RAM:  32 MB to 512 MB (144-pin, 10 ns, PC100 SDRAM SO-DIMM)
  • Graphics:
    • Standard VRAM:  2 MB SGRAM
    • Maximum VRAM:  4 MB SGRAM
    • Video Card:  Onboard ATI Rage LT
    • Built-in Display:  14.1 TFT active-matrix display
    • Native Resolution:  1024 x 768, 24-bit (4 MB VRAM)
  • Built-in Drives:
    • 2 GB EIDE/ATA-2 hard drive
    • Hot-swappable 20X CD-ROM drive (5.25 inch)

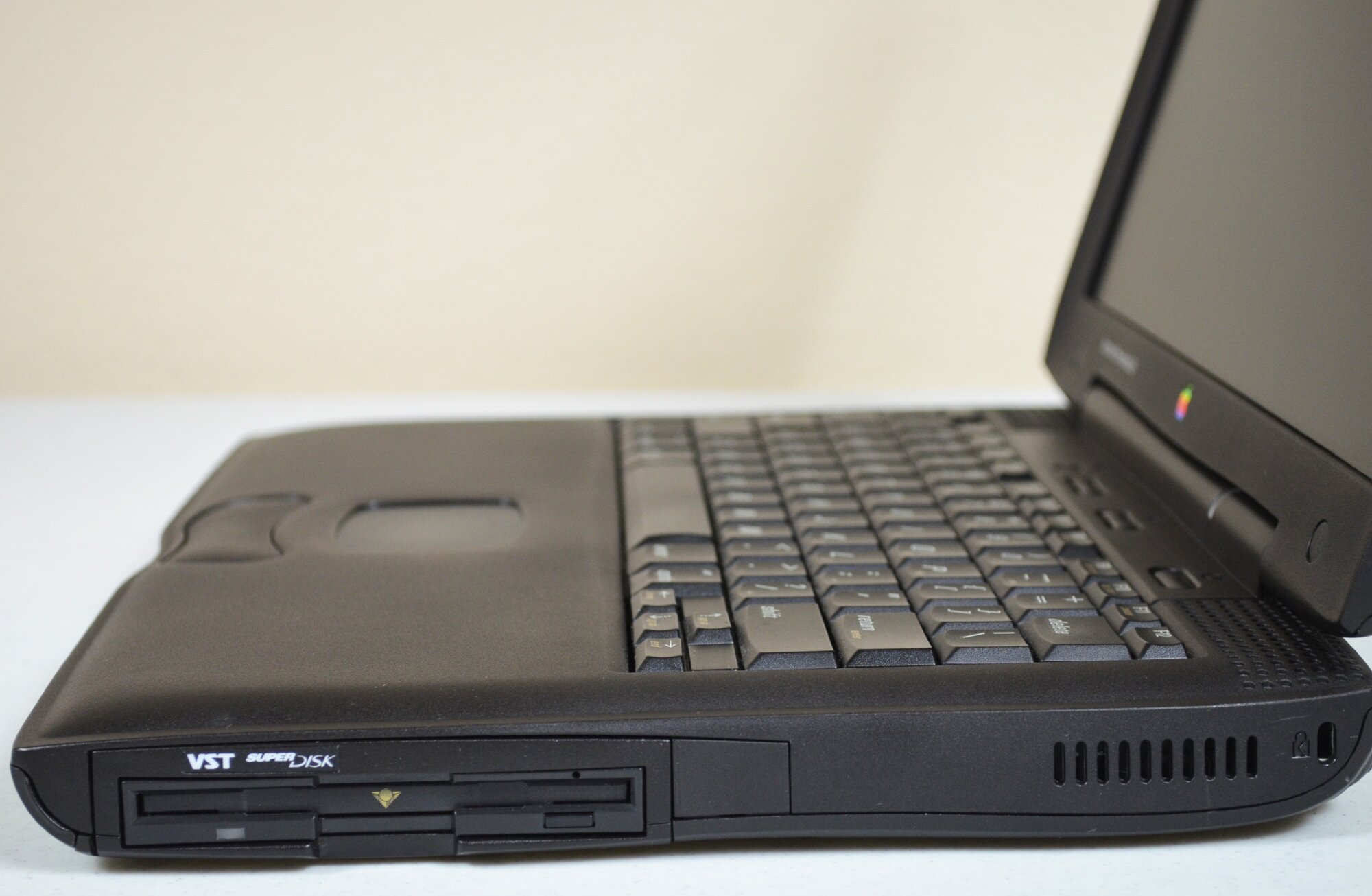

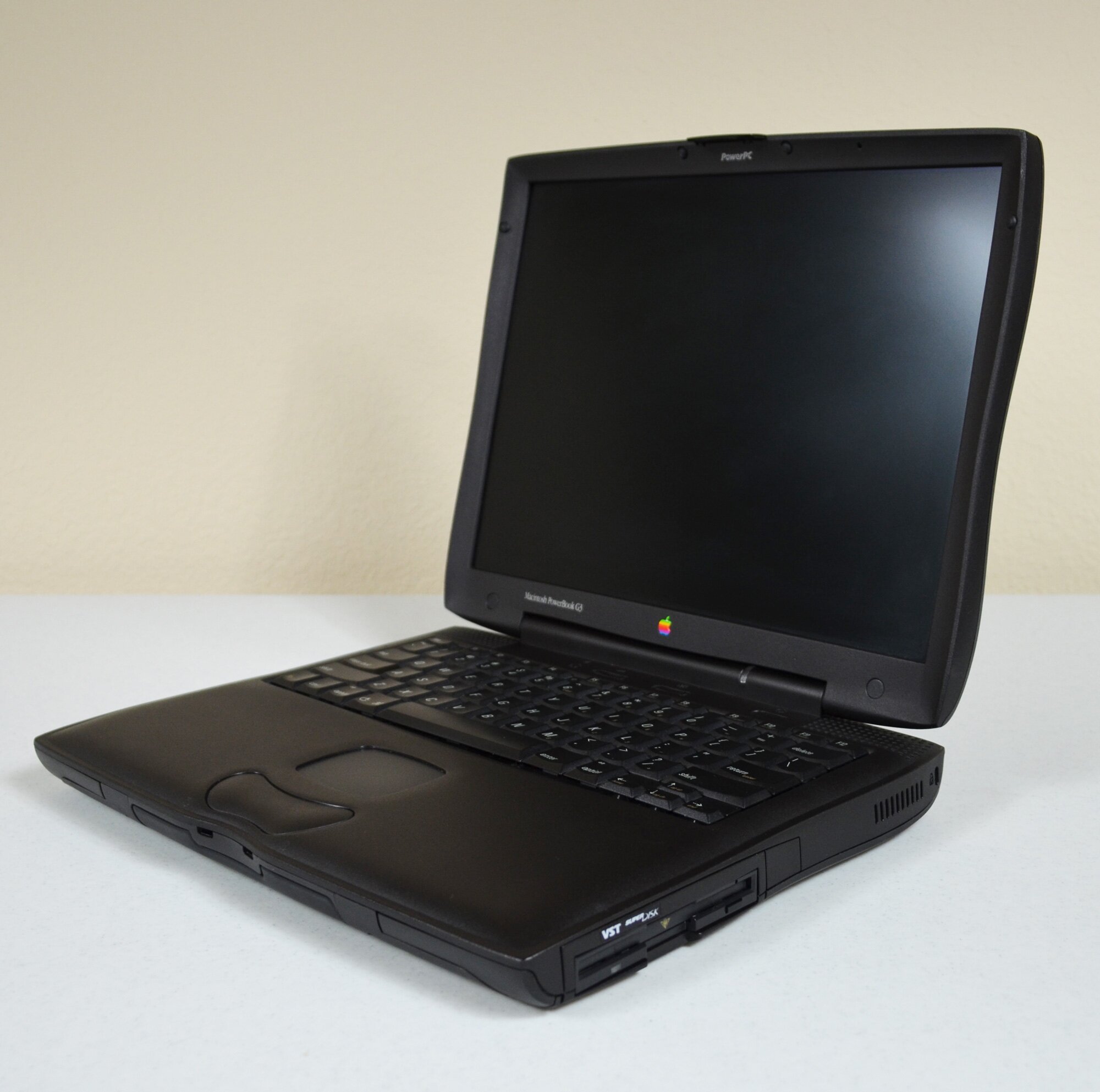

    • Unit pictured on this page has a hot-swappable VST SuperDisk drive (3.25 inch) installed
  • Expansion Slots:
    • 2 Type II PC card slots or 1 Type II card slot
    • 1 Hot-swappable 5.25 drive bay (also fits a compatible 3.5 inch drive or a 3.5 inch battery)
    • 1 Hot-swappable 3.25 drive bay (can be used for a 3.5 inch drive or a 3.5 inch battery)
  • Ports:
    • S-video out
    • RJ-11 modem port for internal 56K modem (on side)
    • RJ-45 10Base-T Ethernet port
    • DIN-8 RS-422 serial printer/modem port
    • HDI-30 SCSI Port
    • HDI-15 external monitor port
    • Apple Desktop Bus (ADB)
    • Infrared window (1-MbIrDA)
    • Audio out
    • Audio in

PowerBook G3 233 (Wallstreet) ports
PowerBook G3 Back Ports

Battery:

  • 49 Wh Lithium Ion
  • Unit can hold up to 2 batteries
  • 3.5 hours on each battery of "normal usage time"

Operating System:

  • Classic Macintosh System 8.1 to X v10.2.8 (Jaguar)

Keyboard/Pad:

  • Integrated keyboard with 77 keys, 12 function keys, and 4 arrow keys
  • Trackpad supports tap, double tap, and drag capabilities

Physical Dimensions:

  • Size (Inches):  2 H x 12.7 W x 10.4 D
  • Weight (Pounds):  7.8


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here

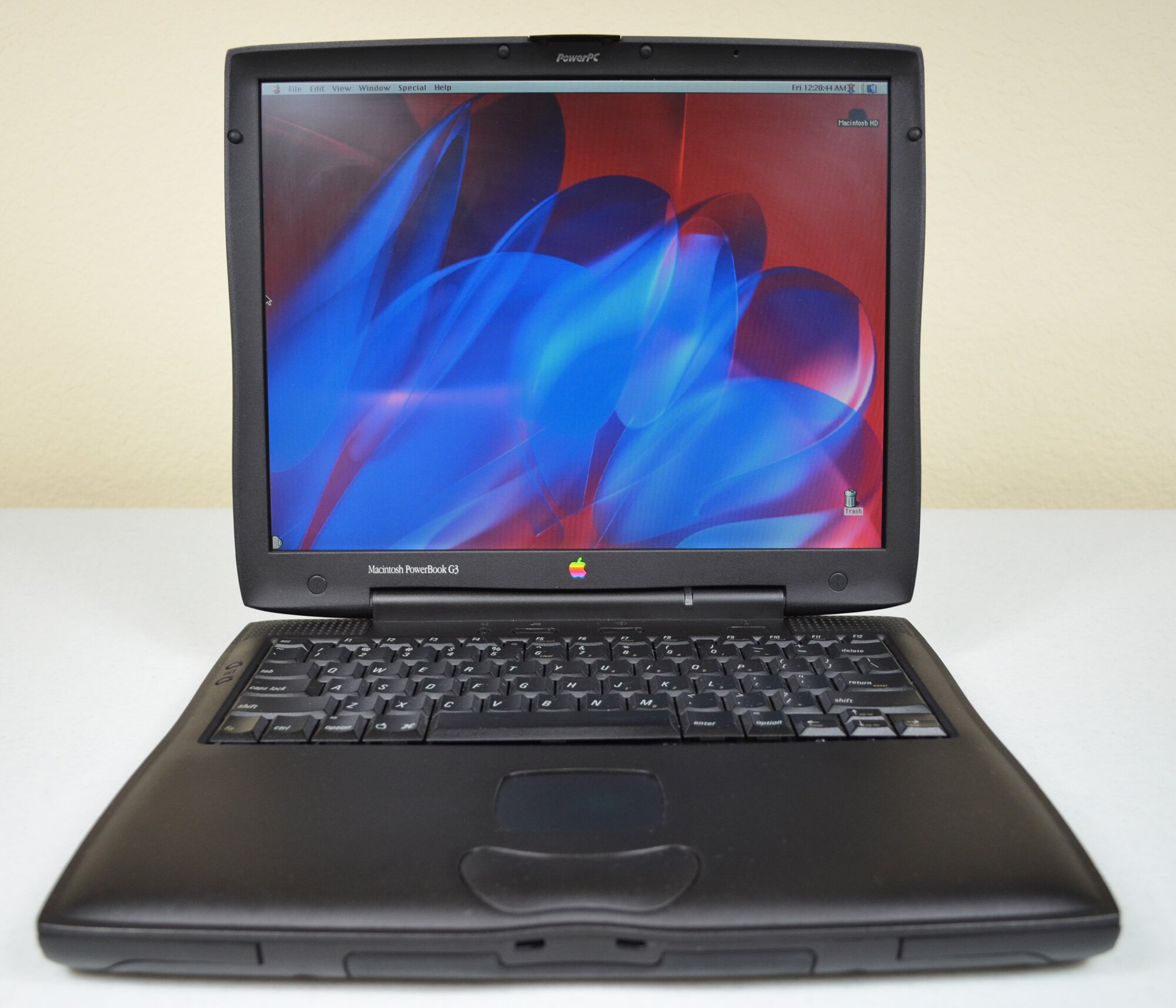

PowerBook G3 233 (Wallstreet) n1 PowerBook G3 233 (Wallstreet) n2 PowerBook G3 233 (Wallstreet) n4 PowerBook G3 233 (Wallstreet) n3

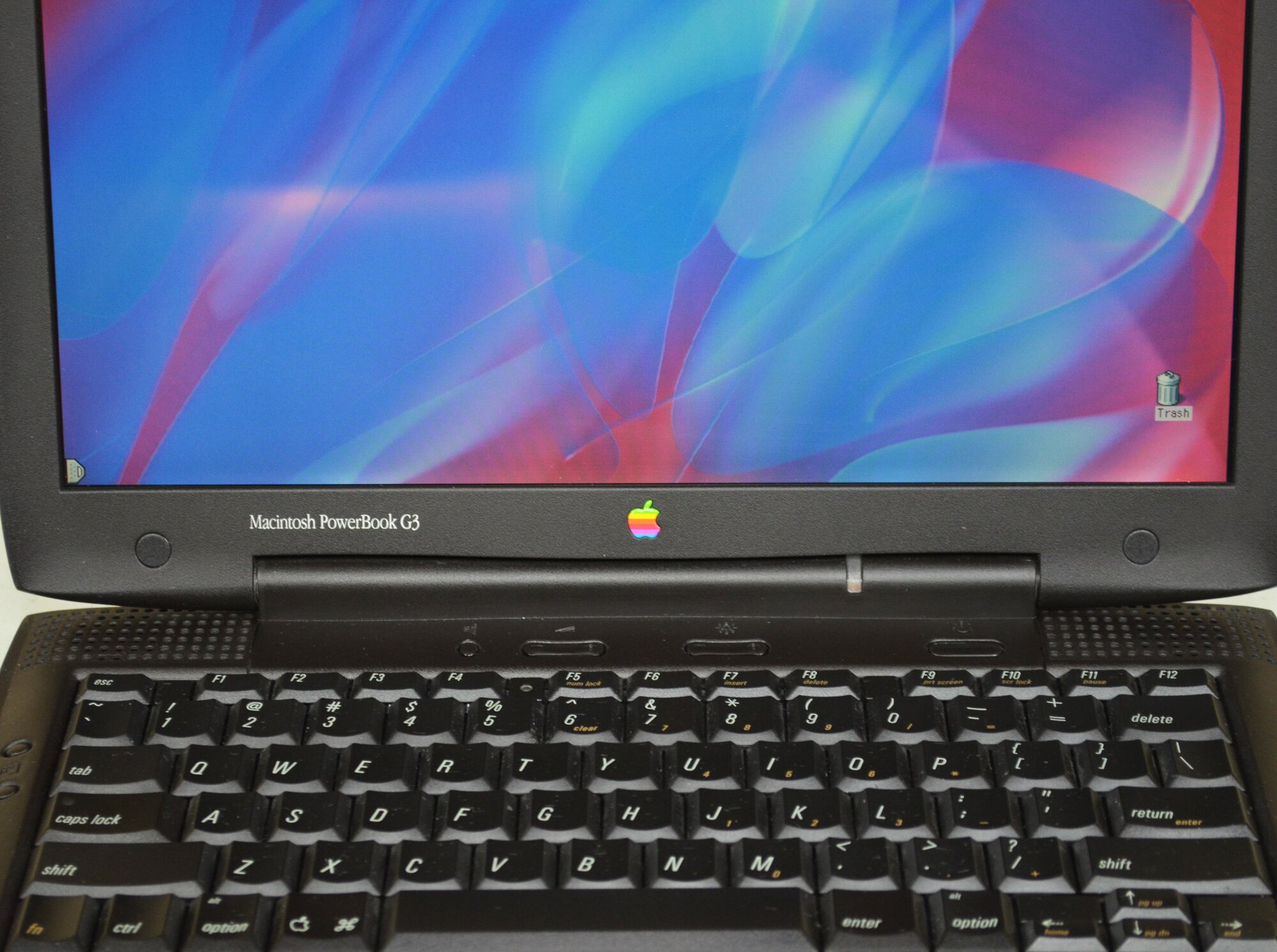

PowerBook G3 233 (Wallstreet) n5 PowerBook G3 233 (Wallstreet) n6 PowerBook G3 233 (Wallstreet) n7 PowerBook G3 233 (Wallstreet) n8
PowerBook G3 233 (Wallstreet) n9


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here

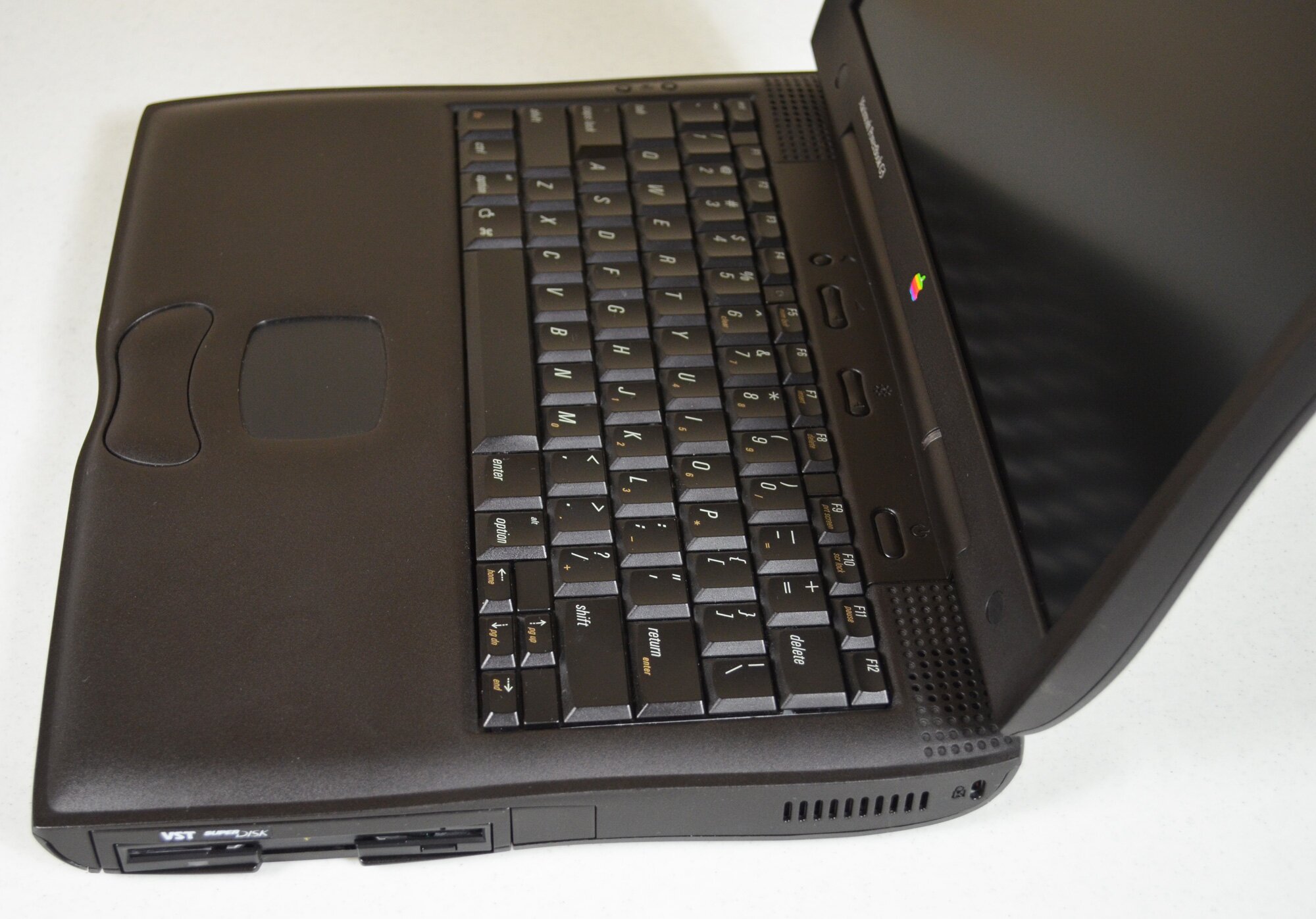

PowerBook G3 233 (Wallstreet) o1 PowerBook G3 233 (Wallstreet) o2 PowerBook G3 233 (Wallstreet) o3 PowerBook G3 233 (Wallstreet) o4
PowerBook G3 233 (Wallstreet) o5 PowerBook G3 233 (Wallstreet) o6 PowerBook G3 233 (Wallstreet) o7
