ColecoVision

Blue Arrow Company:  Coleco
Blue Arrow Model Number:  2400
Blue Arrow Manufacture Date/Year:  1982


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here

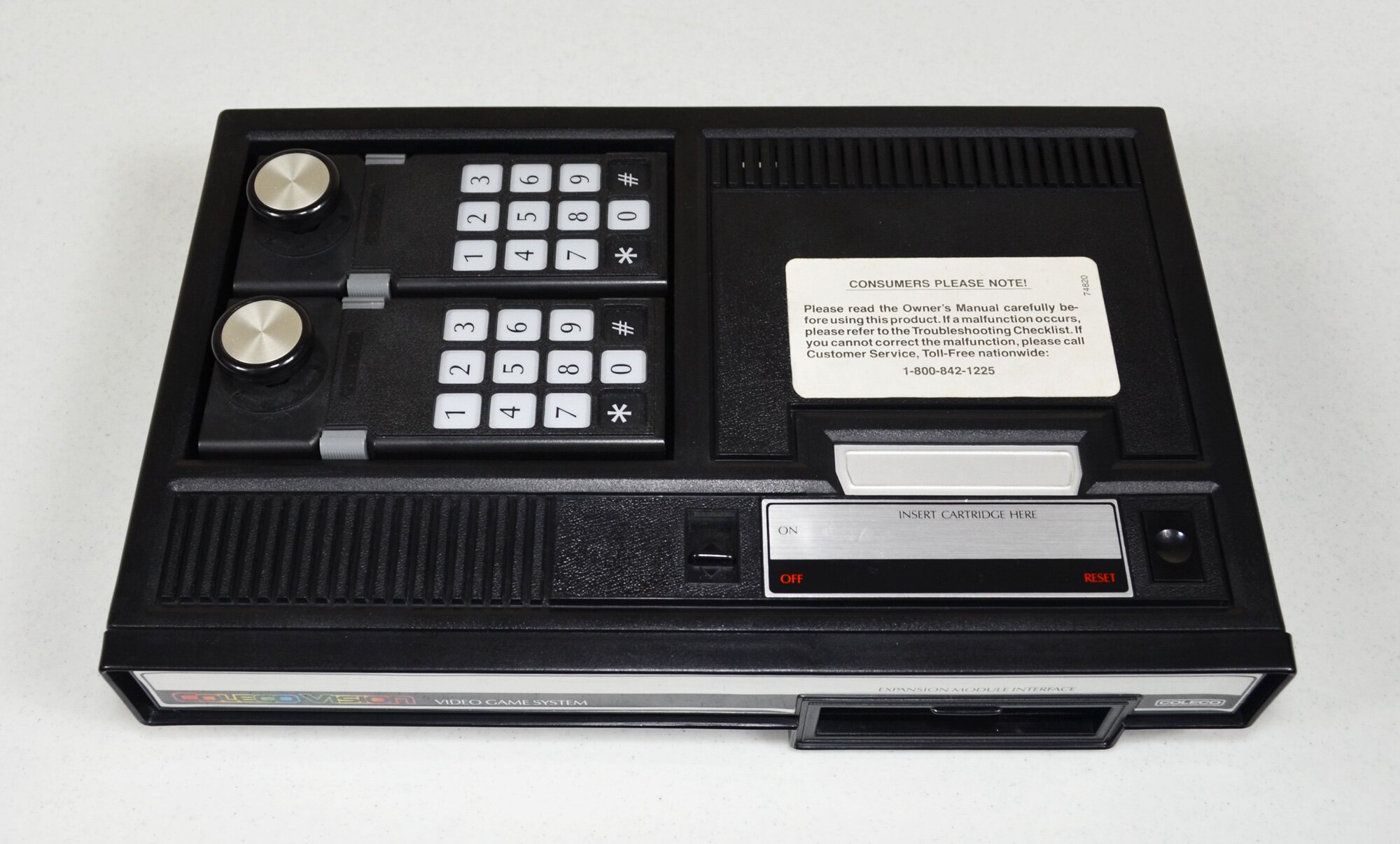

ColecoVision front ColecoVision back ColecoVision side1 ColecoVision side2
ColecoVision herol ColecoVision heror ColecoVision top1 ColecoVision top2


Blue Arrow Specifications

Core Unit:

  • Processor:  3.58 MHz NEC version of Zilog Z80A
  • RAM:  1K
  • ROM:  8K Texas Instruments TMS4764
  • Graphics:
    • Video Processor:  Texas Instruments TMS9928A
    • VRAM:  16K
    • Pixel Resolution:  256 x 192
    • Sprites:  32 on-screen at once
    • Max Colors:  16
  • Sound:
    • Sound Chip:  Texas Instruments SN76489A PSG
    • 3 tone generators
    • 1 noise generator
  • Ports:
    • 2 Controller ports
    • Expansion Module Interface port for the following Coleco Expansion Modules:
      • Expansion Module #1:  Adds Atari 2600 compatibility
      • Expansion Module #2:  Driving controller (steering wheel and gas pedal)
      • Expansion Module #3:  ADAM adapter (converts ColecoVision into an ADAM computer)
      • Roller Controller:  Trackball that shipped with the game cartridge Slither (a Centipede knock off)
Standard Controller:
  • System shipped with 2 detachable standard controllers
  • 12-button keypad (0-9 buttons, * button, and # button)
  • 2 fire buttons, one on each side
  • Each controller has a short 1.5 inch joystick (thumb stick)
  • Designed to accept a thin laminated game overlay over the keypad
Super Action Controller:
  • Sold in a set of two, bundled with Super Action Baseball cartridge
  • 12-button keypad on top (0-9 buttons, * button, and # button) that accepts a thin laminted game overlay
  • Special roller on top (left or right movement)
  • Multi-directional joystick on top
  • 4 multiple-use player select triggers (within the handle grip) for controlling up to four different objects


ColecoVision Controller
Standard ColecoVision Controller
ColecoVision Super Action Controller
Super Action Controller


Game Format:
  • ROM Cartridge (8/16/24/32 KB)



ColecoVision Cartridge
Typical Game Cartridge

Physical Dimensions:
  • Size (Inches):  2 H x 14 W x 8 D


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
ColecoVision n1 ColecoVision n2 ColecoVision n3 ColecoVision n4
ColecoVision n5 ColecoVision n6 ColecoVision n7 ColecoVision n8
ColecoVision n9 ColecoVision n10 ColecoVision n11 ColecoVision n12
ColecoVision n13 ColecoVision n14 ColecoVision n15
